Description

Balance Function: Active Balanced BMS
Function: Overcharge Protection
Function: Over Discharge Protection
Function: Overcurrent Protection
Function: Short Circuit Protection
Usage Scenario: Power BMS
Charge and Discharge Port: Common Port BMS
Type: LIFEPO4 Battery BMS
Handware or Smart: SMART BMS

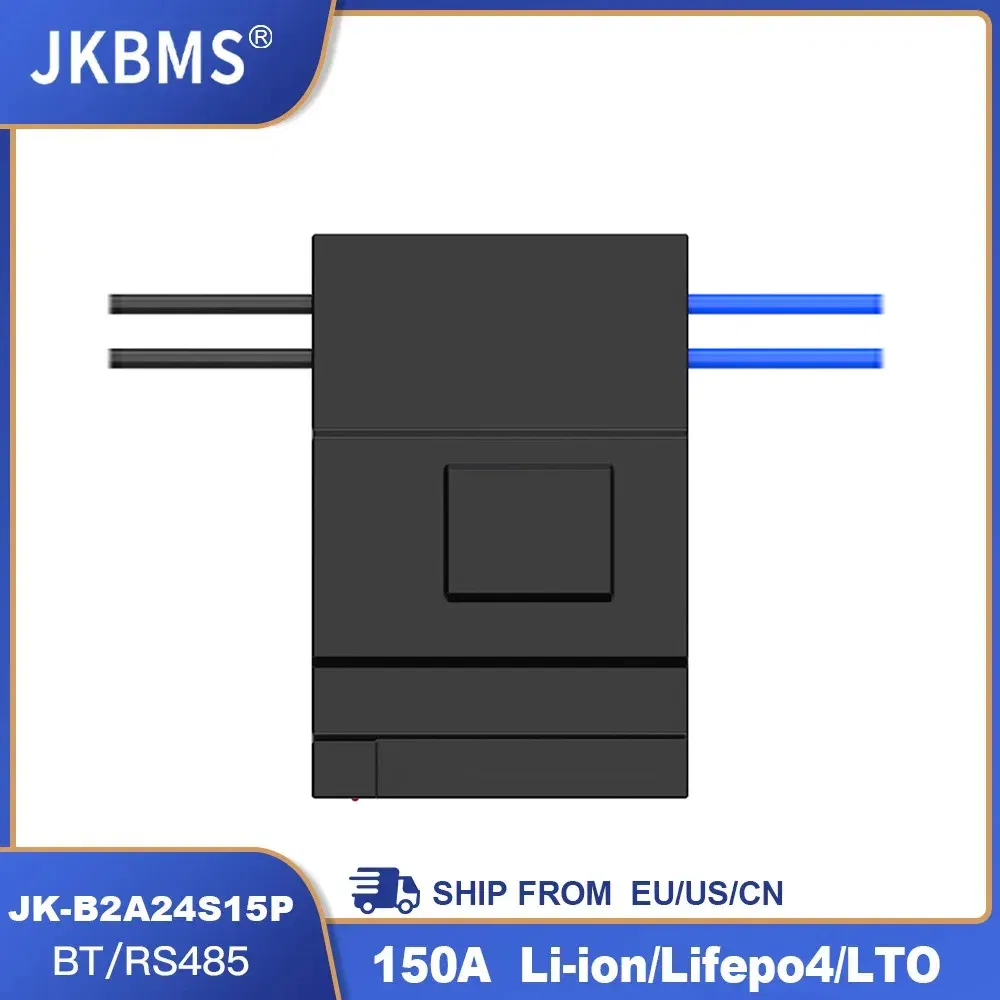

Charging Current: 150A
Certification: CE
Certification: FCC
Certification: RoHS
Origin: Mainland China
Applications: lithium battery rated
Battery series: 8S-24S
Over charge protection: YES
Over discharge voltage: YES
Short circuit protection: YES
Balance function: YES
Bluetooth: YES
GPS: According to Cusotmer need
RS-485: YES
CAN: According to Cusotmer need
Accessory: Wire cable is free
Balance current: MAX 2A
Balance method: active balance

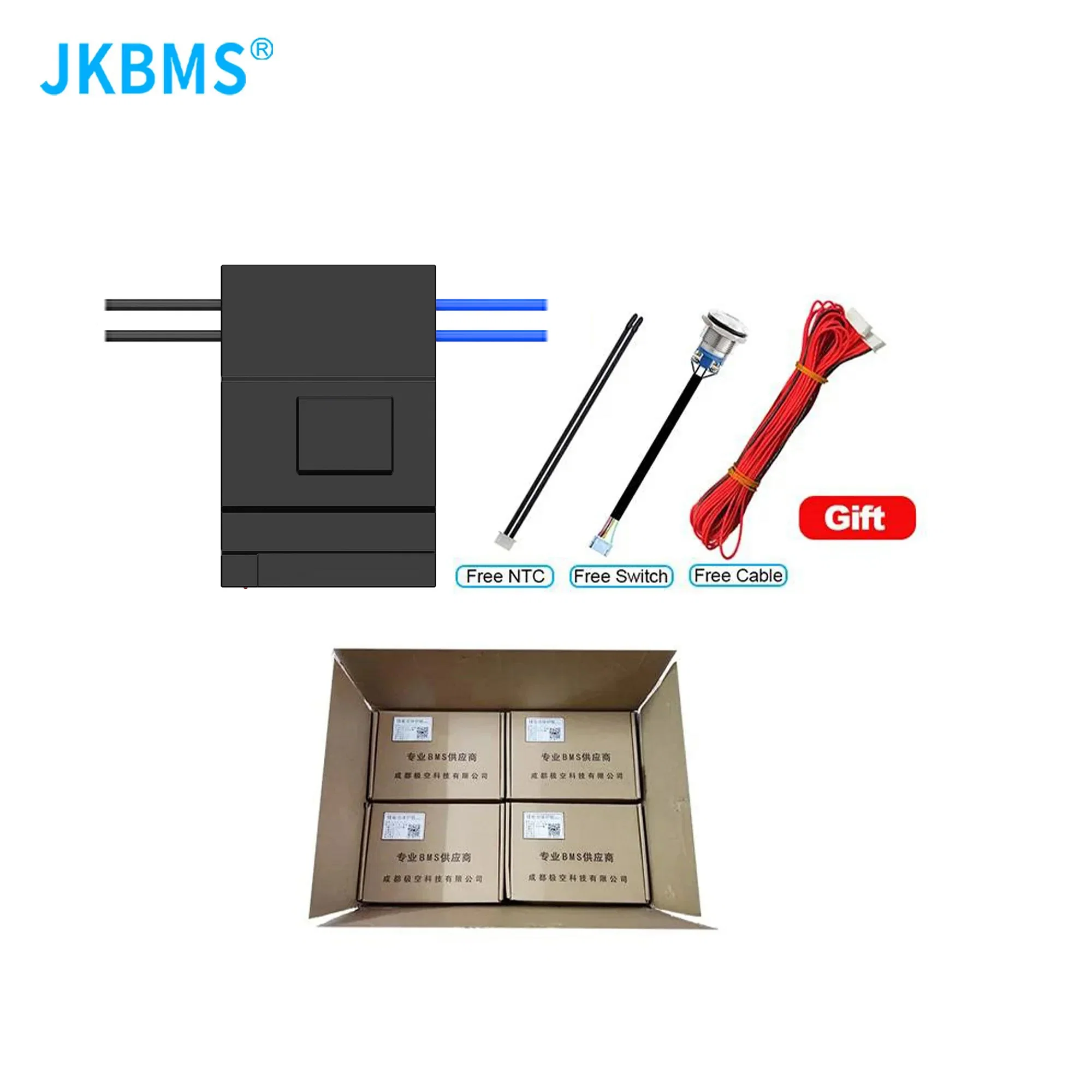

☆Package
BMS{Bluetooth bulit-in}
* Temperature sensor(40cm)
* Balance Wires(75cm)
* Active Switch(15cm)
*Heating cable(Only for BMS With Heat Function)
H:BMS With Heat Function
C:BMS With CANBUS chip Bulit-in

NOTE: For instructions on heating cables,
the green 5PIN cable of the heating cable needs to be linked to the heating pad,
and the rest of the black and red cables are linked to the smart charger
(after the smart charger links the BMS,
it detects the temperature of the battery through the BMS,
which automatically monitors the charging status of the battery)
Heat Function interface
Description of heating function:
Battery temperature is below low temperature charge protection, turn off charging, turn on heating.

Cryogenic charge protection is a parameter that can be set within APP

The heating power depends on the battery voltage and the resistance value of the heating film.

Battery voltage U.

Heating resistance R.

Power equals U*U/R

Heating current I=U/R;

The maximum I (current) of the board design is 3A.

MAX heating power 200W(100W OF B2A8S20P).

☆ Pls buy the accessory from the following link.
https://www.aliexpress.com/item/1005004233638105.html

☆ Bluetooth link for Phone-JK BMS

Download link-IOS : Search (JK BMS) in the APP STORE

Download link-Andriod :Search (JK BMS) in the Google STORE
